Spline Drive Bolts (Wheel Bolts & Nuts)
Multi-tooth drive pattern for high-torque applications on heavy-duty commercial wheels.

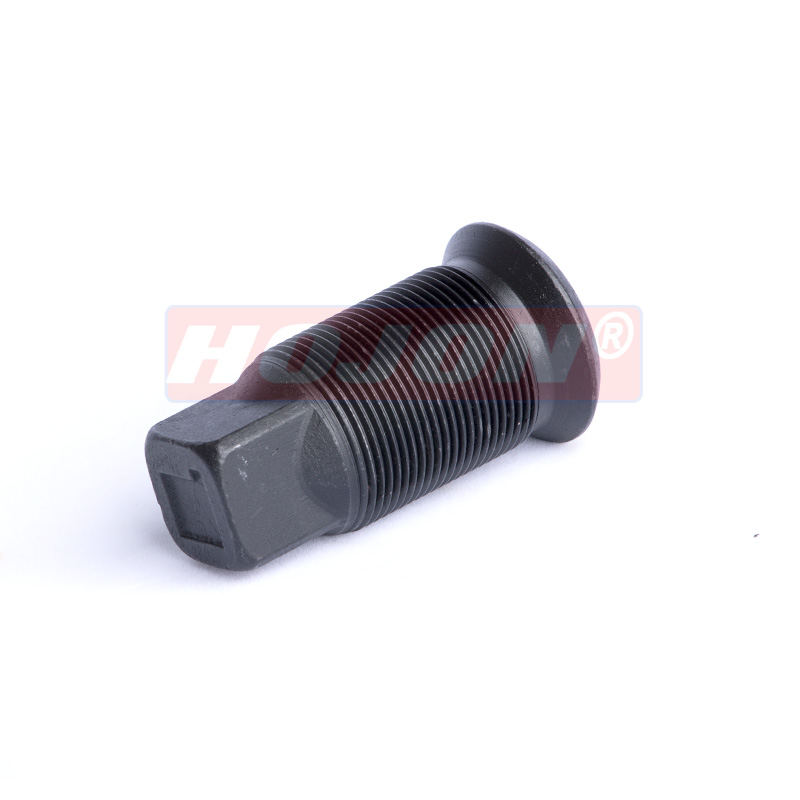

Spline Drive Bolts
SKU: 9005A
10.9
GradeM22
ThreadZinc
FinishSurface
- Zinc plated
- Dacromet
Grade
10.9 / 12.9
Drive Type
Spline (external hex)
Lead Time
30 days
Material
35Cr.Mo / 40Cr
Thread
M18x1.5 / M20x1.5 / M22x1.5
Vehicles
- American trucks
- Trailers
MOQ
3000 pcs
Key Features
- External spline drive for high-torque installation
- Grade 10.9 / 12.9 hardness tested
- M18, M20, M22, M22x1.5 thread sizes
- For American-market trucks and trailers
- Dacromet coating resists road salt corrosion
Compare Products
→ View Comparison List
class="inquiry-form" style="margin-top:36px;padding:28px;background:var(--bg-light);border-radius:var(--radius-md);border:1px solid var(--border-light)">
Request a Quote
Get pricing and lead time for this product. We respond within 24 hours.
Frequently Asked Questions
Why use spline drive vs standard hex drive?
Spline drive distributes torque over many teeth, providing higher torque transfer with reduced risk of rounding off. Critical for high-torque applications like commercial truck wheel installation.
What tools are required?
Matching spline socket (sold separately). Standard hex sockets will not engage. Specify spline size when ordering.
What grades are available?
Grade 10.9 and Grade 12.9. For commercial truck wheels, we recommend Grade 12.9 for maximum safety margin.
